More than 80% of structural problems in high-rise buildings can be traced back to inadequate subsoil preparation-a staggering reality often overlooked in favor of architectural aesthetics. While glass facades and sleek designs capture attention, the real strength of any building lies deep beneath the surface. In modern construction, especially in dense urban environments, the foundation isn't just a base; it's a carefully engineered system designed to interact with complex soil conditions. And one method has emerged as a go-to solution where stability, precision, and minimal disruption are non-negotiable: augered piling. This technique isn’t just for geotechnical specialists anymore-it’s becoming essential knowledge for developers, architects, and city planners aiming for long-term structural resilience.
The Engineering Logic Behind Augered Piling

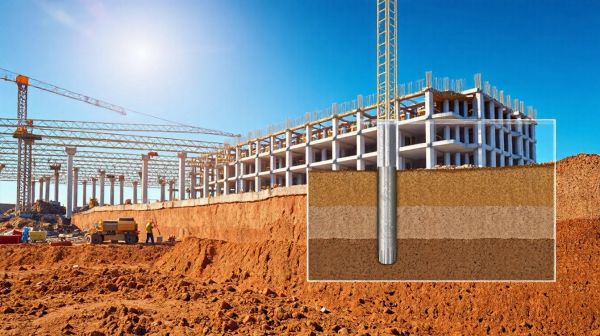

At the heart of augered piling lies a deceptively simple yet highly effective principle: drilling into the ground with a continuous flight auger that simultaneously removes soil while maintaining borehole integrity. Unlike traditional methods that require temporary casings to prevent collapse, this technique uses a hollow-stem auger that allows for immediate grout injection as the auger is withdrawn. This seamless process ensures that the void left behind doesn't have time to cave in, especially critical in loose or water-logged soils. The grout or concrete is pumped under pressure from the bottom up, filling the space uniformly and forming a solid, load-bearing pile. This method excels in stratified soils-such as alternating layers of clay, silt, and sand-where differential settlement could otherwise compromise the entire structure.
Maintaining Soil Integrity During Installation
One of the standout advantages of augered piling is its ability to preserve soil stability throughout the installation process. Because the auger remains in place until grouting begins, the walls of the borehole are continuously supported, eliminating the need for external casings in most conditions. This is particularly valuable in areas with weak or unstable soil layers, where even minor disturbances can trigger subsidence. The controlled withdrawal speed and synchronized grout flow ensure that the pile maintains its intended diameter and shape, preventing defects like necking-narrowing of the pile shaft due to soil collapse or uneven filling. Engineers rely on this consistency to meet strict geotechnical standards, especially when designing for high axial load capacity, often ranging between 500 kN and 3,000+ kN depending on diameter and depth.
Engineering firms looking for noise-sensitive solutions often find that CFA Augered Piling provides the necessary soil stability without disrupting the surrounding neighborhood. This makes it ideal for projects near residential zones, hospitals, or schools, where vibration and noise must be kept to an absolute minimum.
| 🔧 Parameter | Augered Piling (CFA) | Traditional Driven Piles |
|---|---|---|
| Installation Speed | 20-30 piles per day | 10-15 piles per day |
| Noise Level | Low (ideal for urban zones) | High (requires permits) |
| Soil Extraction | Minimal to none | Significant (spoil removal needed) |
| Vibration Impact | Negligible | High (risk to nearby structures) |
| Axial Load Capacity | 500 kN - 3,000+ kN | 400 kN - 2,500 kN |
The data shows a clear edge in efficiency and environmental compatibility. Augered piling minimizes logistical headaches-no need for spoil disposal, fewer noise complaints, and faster mobilization. While the initial setup cost may be higher due to specialized rigs, the overall project savings, especially in urban redevelopments, often make it the more economical choice in the long run.
Top Strategies for Site-Specific Optimization
Every construction site presents its own set of challenges-geological, environmental, and logistical. The adaptability of augered piling makes it a versatile tool in the engineer’s arsenal, capable of addressing a wide range of constraints. Whether working on a reclaimed industrial site or adjacent to a centuries-old building, the method can be fine-tuned to meet specific demands. Its low-impact nature allows for work to proceed in occupied areas, reducing downtime and avoiding costly relocations. In this context, choosing the right foundation technique isn’t just about strength-it’s about minimizing collateral effects while maximizing performance.
Navigating Urban and Sensitive Environments
Building in cities means working in close proximity to existing infrastructure, historic structures, and active communities. In such settings, traditional pile-driving methods-known for their loud impacts and ground vibrations-can pose real risks. Cracks in adjacent walls, disturbed utility lines, or even structural fatigue in older buildings are all possible consequences. Augered piling, by contrast, operates with negligible vibration and minimal noise, making it a preferred choice near heritage sites or densely populated neighborhoods. Because it doesn’t require pile-driving permits related to noise pollution, projects can move forward faster, without regulatory delays. This also means construction can continue during hours when other methods would be prohibited, accelerating timelines significantly.
Adapting to Contaminated or Stratified Soils
On brownfield sites-former industrial or commercial lands where soil contamination is a concern-the challenge isn’t just structural but environmental. Traditional excavation methods risk disturbing hazardous materials, requiring costly containment and disposal procedures. Augered piling sidesteps this issue entirely: since it doesn’t extract soil, there’s no need to handle or transport potentially contaminated spoil. The continuous flight auger drills cleanly into the ground, and the grout seals the pile in place, effectively encapsulating any surrounding contaminants. This not only reduces environmental liability but also cuts down on remediation costs. In stratified soils, where layers vary in density and water content, the method’s precision ensures consistent load transfer, avoiding weak zones that could lead to differential settlement.
- ✅ Minimal noise pollution - ideal for residential and historical zones
- ✅ Negligible vibration - protects nearby structures and infrastructure
- ✅ No soil spoil removal - reduces cost and environmental impact
- ✅ High torque efficiency - performs well in diverse geological conditions
- ✅ Real-time adaptability - can be adjusted based on on-site monitoring
Advanced Monitoring and Quality Control
Even the most advanced foundation technique is only as reliable as the quality control behind it. With augered piling, success hinges on precision at every stage-from drilling depth to grout volume. A small deviation in any parameter can compromise the structural integrity of the pile, especially when supporting high-rise buildings or critical infrastructure. That’s why modern CFA rigs are equipped with advanced digital systems that monitor key variables in real time. These tools don’t just record data-they actively guide the operator, ensuring consistency across dozens or even hundreds of piles on a single site.
Real-Time Grouting Pressure Analysis
One of the most critical aspects of augered piling is ensuring that the grout fills the entire borehole uniformly. If too little grout is pumped, the pile may develop weak spots or necking; too much, and it could cause heaving or soil displacement. To prevent this, rigs use flow meters and pressure sensors that track the volume and consistency of grout being injected. These systems compare actual values against theoretical calculations based on auger diameter and withdrawal speed. Any discrepancy triggers an alert, allowing immediate correction. This level of control is especially important in deep installations where visual inspection isn’t possible, ensuring that each pile meets exacting standards before moving to the next.
Verifying Depth and Resistance Capacity
Reaching the target depth-often up to 30 meters-is only part of the equation. The pile must also penetrate into competent load-bearing strata, such as dense sand or bedrock, to provide adequate support. During drilling, resistance data is continuously recorded, giving engineers a profile of soil strength at various depths. After installation, further verification is done through load testing, where a hydraulic jack applies increasing force to the pile head to measure settlement. This test confirms the pile’s safety factor-typically 2.0 to 3.0-ensuring it can safely carry the intended structural loads. These checks are not optional; they’re a cornerstone of responsible engineering, especially in high-risk or high-value projects.
- 📊 Automated flow monitoring ensures grout volume matches theoretical needs
- 🔍 Resistance profiling identifies optimal bearing layers during drilling
- ⚖️ Load testing validates axial capacity before superstructure work begins
The most common questions
Does the flight auger method work in soils with high water tables?
Yes, augered piling is well-suited for water-saturated soils. The continuous auger maintains borehole stability, while the pressurized grout injection counteracts hydrostatic pressure, preventing water ingress and ensuring a solid, uniform pile formation.
Can augered piling be used under existing low-headroom bridges?
Yes, using sectional augers and compact rigs, the method can be adapted for confined spaces. Specialized equipment allows drilling in areas with limited vertical clearance, making it viable for under-bridge foundations or retrofitting projects.
How soon after installation can the structural framework be loaded?
Typically, loading can begin once the grout has reached sufficient strength, usually after 7 to 14 days. Final timing depends on mix design and curing conditions, verified through compressive strength testing.
What diameters are available for augered piles?
Augered piles commonly range from 450 mm to 900 mm in diameter, allowing customization based on structural requirements. Larger diameters support higher loads and are selected for heavy infrastructure or high-rise applications.
Is augered piling cost-effective for large-scale developments?
Yes, despite higher initial equipment costs, the speed of installation-up to 30 piles per day-and reduced need for spoil removal make it highly cost-efficient for large urban projects.
